Description

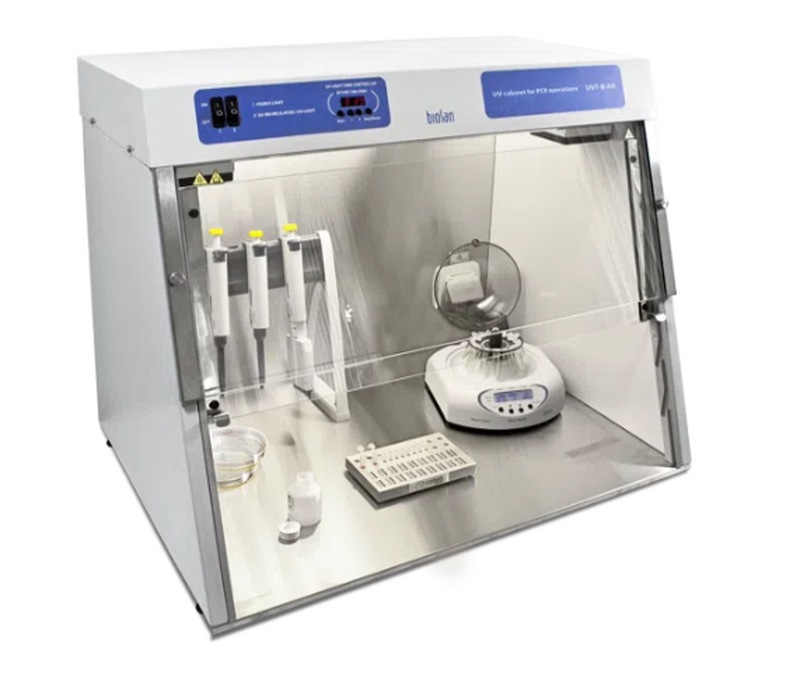

DNA/RNA UV-cleaner box UVT-B-AR is designed for clean operations with DNA samples. UV-Cabinet provide protection against contamination.
Model is a bench-top type, made of metal framework, working surface made of stainless steel.
UV-cleaner boxes are equipped with an open UV lamp installed in the upper hood. UV-radiation from the open lamps disinfects the working area inactivating DNA/RNA fragments during 15–30 min of exposure. A digital timer controls duration of the direct UV irradiation. A daylight lamp provides proper illumination of the working surface.
UV-cleaner boxes are equipped with a flow-type bactericidal UV cleaner–recirculator AR, which provides constant decontamination inside the cabinet during operation. They are recommended for operations with DNA/RNA amplicons.
UV cleaner–recirculator AR consists of a UV lamp, a fan and dust filters organized in a special body so that a user working with a UV-cleaner box is protected against UV light. Recirculator increases the maximum density of UV light making it sufficiently effective for DNA/RNA inactivation. The UV–recirculator processes 100 UV-cleaner box volumes per hour, creating permanent aseptic conditions of operation inside the UV-cleaner box.
Specially assigned moving tables T-4 (with wheel locks) with a drawer are available on request.
Advantages of Biosan UV-cleaner boxes:
- Ozone free high density UV decontamination
- Long living UV lamps (9,000 hours average)
- Automatic switch off of UV-lamps when the protective screen is opened
- Bactericidal flow-type recirculator providing permanent decontamination inside UV–cabinet during operation
- Shockproof glass walls
- Low noise, low energy consumption
- Tables for installation of UV-cleaner boxes
- UV-cleaner boxes with the bactericidal UV cleaner–recirculator AR is the patented Biosan solution
Specification
| Walls material | Rear: stainless steel, Sides: steel with chemical resistant powder coating Front: glass (EUROGLASS, Germany) |
|---|
| Working surface material | Stainless steel |
|---|
| Open UV-lamp | 1 x 25W built‑in bactericidal UV-C, TUV 25W 1SL/25 |
|---|
| UV radiation level | 18 mW / cm2 / sec |
|---|
| Radiation type | UV (λ = 253.7 nm), ozone-free |
|---|
| Digital time setting of direct UV exposure | 1 min–24 hrs / non–stop (increment 1 min) |
|---|
| UV-recirculator | 1x25W (efficiency >99% per 1 hour) |
|---|
| Daylight lamp (for working area illumination) | 1 x TLD-15W |
|---|
| Thickness of side panels | 2 mm |
|---|
| Thickness of upper front panel | 8 mm |
|---|
| Thickness of screen | 4 mm |
|---|
| Optical transmission | 95% |
|---|
| UV protection | >96%, UV-protection film |
|---|
| Working area | 645 × 490 mm |
|---|
| Opening dimensions (fully raised protective screen) | 645 × 190 mm |
|---|
| Safety features | Automatic open UV-lamp switch off when screen is open |
|---|
| Power outlets inside the unit | Inlet for power cords and 1x Built-in socket, max. 1000 W |
|---|
| Overall dimensions (W×D×H) | 700 × 580 × 555 mm |
|---|
| Weight (net / gross) | 31.2 / 42 kg |
|---|
| Power consumption | 67 W |
|---|
| Nominal operating voltage | 100-240 V, 50/60Hz |
|---|
| Optional table | T-4 (800 × 600 × 750 mm) |
|---|
