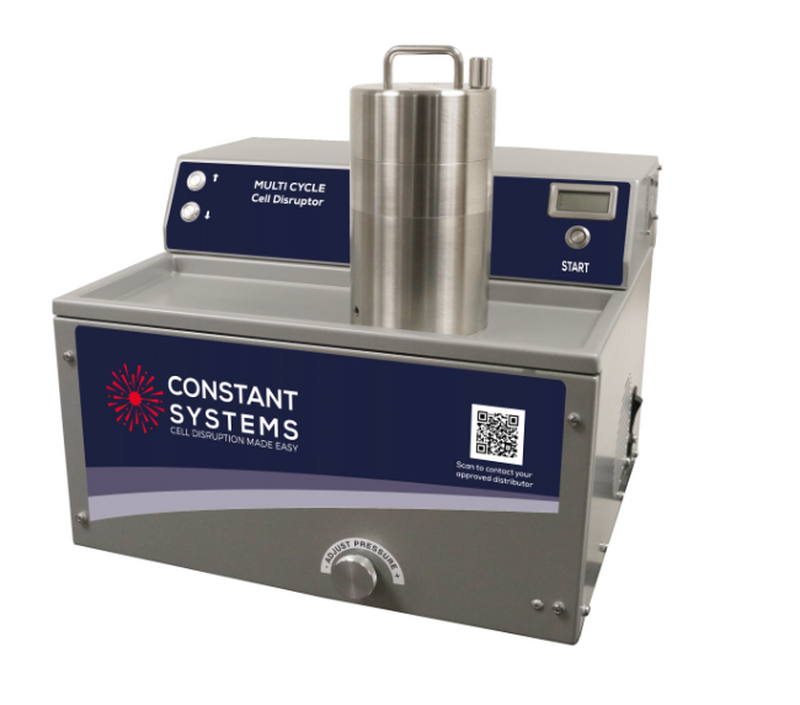

The MC is capable of processing volumes from 0.5mL to 40mL per process and is recommended for volumes up to 80mL which makes the MC ideal for those users who wish to upgrade from small bench-top techniques such as bead beating and sonication. The MC takes advantage of Constant Systems precise and consistent hydraulic control which is fully scalable through the whole product range from 0.5mL single preparation processing to large volume processing at 150L per hour. This precise control ensures that the entire sample is processed at the operators set pressure to ensure accurate and consistent results and in most cases a single process or pass is adequate therefore multiple passes are not required. The MC model can be utilised in three modes, these being Single Cycle (SC), Multi Cycle (MC) and Re Cycle (RC) for processing fluid, viscous, tissue, plant and frozen sample types.

SC Mode is simply a single cycle process and can be utilised to process 0.5mL – 8mL volumes of all sample types whether fluid, solid, frozen, tissue or plant.

MC Mode can be utilised to process greater than 8mL volumes up to 40mL in each process and recommended for a total volume no greater than 80mL. In MC mode all sample types that are fluid and re-suspended can be processed.

Specifications

• Simple, quick and easy to use
• No need for compressed air or bottled gas, standard electrical supply required only
• No need to prime or purge the equipment prior to use. Any air in the system is simply processed at no detrimental effect to the sample or the equipment
• Design incorporates a stainless steel tray to capture accidental spillages
• Disruption pressure displayed digitally and is easily and accurately set between 1-40 kpsi
• Ability to process fluid, re-suspended, viscous, tissue, plant and frozen sample types
• Collection cups provided can be transferred to and from ice or freezer to aid temperature control of sample
• Constant Systems precise and consistent hydraulic control ensures that consistency is maintained during each and every process giving you confidence in repeatability with 99% of the sample being processed at the set pressure
• Fully contained during the process
• Utilising industry standard media such as Ethanol (70%), Sodium Hydroxide (1 molar) and detergents such as Virkon (1%) the OS models can be easily cleaned using the following methods:
• Process flow cleaning – simply process cleaning media through the equipment as you would your sample
• Manual cleaning – All product path components can easily be dismantled for autoclaving or manual cleaning
• Product path materials are industry standard Stainless Steel 316L and F51 duplex or equivalent, EPDM, GLFPTFE & PEEK 450G ensuring that all sample types and industry standard cleaning media can be processed as standard
• Unit Dimensions: 475x510x455 mm (DxWxH)
• Unit Weight: 110 kg
• Electrical connections – country specific plug type and standard single phase supply via C15 or C20 connection

Additional information: https://constantsystems.com/pr...
